Khoom Parameters
| Yam khoom | Specification |
|---|---|
| Khoom siv | Cam khwb cia hlau (Class 35, 40), Aluminium (A356-T6) |
| Kev tsim khoom | Sand Casting, Tuag Casting, CNC Machining |
| Kev teeb tsa | Inline, V-type, Flat/Boxer |
| Lub tog raj kheej Range | 2-12 lub tog raj kheej |
| Daim ntawv thov | Automotive, maus taus, muaj cav |
| MOQ | 5 pcs ib |
piav qhia

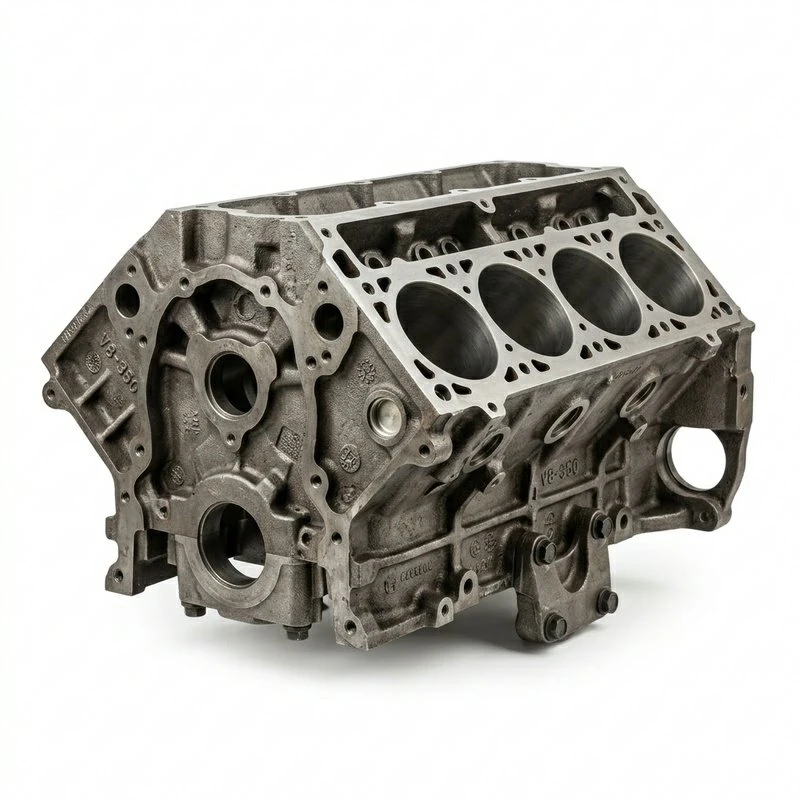

Lub tog raj kheej lub tog raj kheej muaj cov thooj voos kheej kheej uas pistons reciprocate - lub thaiv yog cov txheej txheem nraub qaum ntawm lub cav, nqa cov crankshaft lub ntsiab bearings, tuav cov dej txias, thiab muab cov mounting rau lub tog raj kheej taub hau. Lub thaiv yuav tsum nruj txaus los tuav lub piston- mus rau -lub tog raj kheej tshem tawm los ntawm thermal cycling thiab mechanical loading. cam khwb cia hlau blocks dominate nyob rau hauv hnyav-lub luag hauj lwm thiab kev ua hauj lwm daim ntawv thov - cov hlau muab qhov nruj, cov yam ntxwv damping txo kev co, thiab cov cam khwb cia hlau lub tog raj kheej bores hnav zoo dua lub tes tsho inserts. Aluminium blocks yog sib dua thiab dissipate tshav kub sai, uas yog vim li cas lawv dominate nyob rau hauv maus taus thiab kev ua tau zoo automotive daim ntaub ntawv.
Coolant Jacket Design thiab Cooling Uniformity
Lub tsho coolant tsis yog ib txoj hauv kev rau cov dej txias kom ntws los ntawm - nws cov geometry txiav txim siab npaum li cas lub tog raj kheej phab ntsa txias. Yog tias ib cheeb tsam ntawm lub tog raj kheej khiav kub dua li lwm qhov, thermal expansion tsis sib xws, uas ua rau piston npuaj thiab lub tog raj kheej ovalization dhau sijhawm. Lub tsho zoo tsim ua kom lub tog raj kheej phab ntsa kub tsis sib xws thoob plaws tag nrho qhov chaw tua hluav taws.
FAQ
Q1: MOQ?
A1: 5 daim rau cav thaiv castings.
Q2: Khoom siv?
A2: Cam khwb cia hlau Class 35/40 rau hnyav-lub luag haujlwm. A356-T6 txhuas rau kev siv lub teeb.
Q3: Configuration?
A3: Inline, V-hom, tiaj/boxer xyaw.
Q4: Cov txheej txheem tsim khoom?
A4: Xuab zeb casting (hloov tau), tuag casting (siab ntim, du nto), CNC machining.
Q5: Kev cai configuration?
A5: Yog. Custom bore sizes, stroke lengths, loj bearing loj.
Q6: Kev kuaj muaj?
A6: Kev ntsuas siab ntawm cov dej txias thiab cov roj hla. Magnaflux rau kev tshawb nrhiav tawg.
Zoo tsis yog -negotiable nyob rau hauv precision manufacturing. Txhua yam khoom raug soj ntsuam nruj ntawm txhua theem ntawm kev tsim khoom.
- TIAB SA 16949- Automotive zoo tswj system rau kev nyab xeeb- cov khoom tseem ceeb
- PIB / PPF- Cov ntaub ntawv pov thawj ntawm Cov Txheej Txheem Ntau Lawm muaj nyob rau ntawm kev thov
- AIAG Core Tools- APQP, FMEA, SPC, thiab MSA cov ntaub ntawv ntawm kev thov
- Passivation / Electropolishing- ASTM A967 cov txheej txheem rau corrosion kuj
- Khoom siv Traceability- Thaum tshav kub kub tus lej taug qab los ntawm cov khoom siv raw mus rau qhov ua tiav
Los ntawm raw khoom mus rau cov khoom tiav, txhua kauj ruam yog tswj thiab sau tseg:
- Kev npaj khoom siv- CNC tig/milling rau ze -net shape
- Kev kho cua sov- Los ntawm - hardening lossis rooj plaub - hardening rau lub zog - qhov tseem ceeb
- Kev npaj nto- Degreasing, kua qaub ntxuav, thiab ua kom nto
- Electroplating- Tswj cov txheej txheem da dej nrog kev saib xyuas tuab
- Sealing / ci- Chrome sealing, anodize sealing, lossis hydrogen embrittlement relief ci
- Kev tshuaj xyuas- Txheej thickness ntsuas, kuaj adhesion, thiab kuaj pom
- Ntim- Kev tiv thaiv interleaving, VCI ntim, thiab tiv thaiv -tarnish wrapping
Cim npe nrov: cav lub tog raj kheej blocks, Tuam Tshoj engine cylinder blocks manufacturers
