Khoom Parameters
| Yam khoom | Specification |
|---|---|
| Khoom siv | Aluminium 6063-T5, 6061-T6 |
| Kev tsim khoom | Extrusion, CNC Machining, Bonded Fin |
| Nto | Dub Anodized, Ntshiab Anodized |
| Thermal Performance | 0.5℃/ W - 20℃/ W |
| Daim ntawv thov | Electronics txias, LED teeb pom kev zoo, lub zog semiconductors |
| MOQ | 10 pcs |
piav qhia
Anodized aluminium heat sinks dissipate heat los ntawm cov khoom siv hluav taws xob - ua kom qhov kub thiab txias tsis pub dhau kev txwv kev nyab xeeb kom cov khoom siv hluav taws xob ua tau zoo thiab kav ntev. Lub anodized nto tsis tsuas yog tiv thaiv cov txhuas los ntawm corrosion tab sis kuj nce thermal emissivity, txhim kho tshav kub tawg ntawm lub dab dej nto. Dub anodizing maximizes thermal emissivity thiab muab lub dab dej kub ib tug kws tshaj lij tsos. Ntshiab anodizing khaws cov txhuas zoo thaum muab kev tiv thaiv corrosion thiab qee qhov kev txhim kho emissivity.

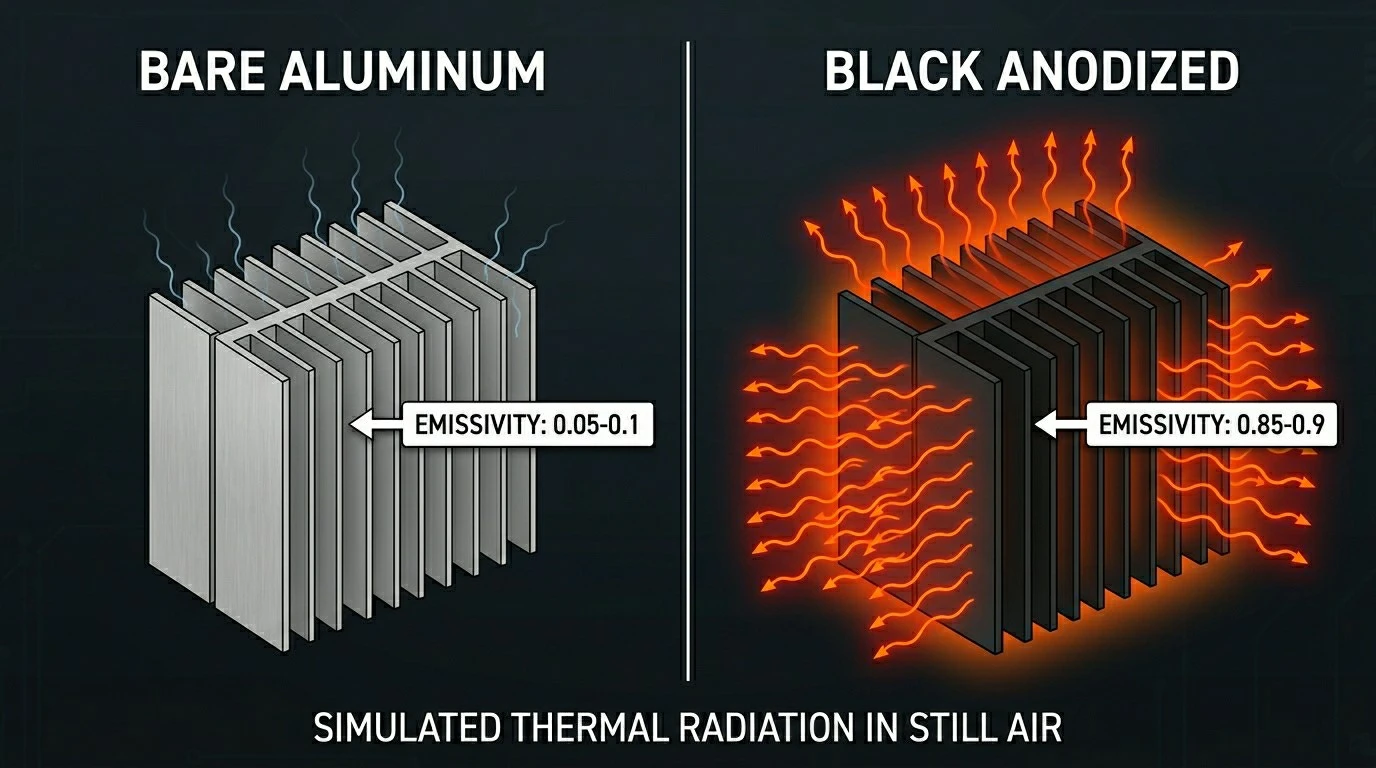

Vim li cas Dub Anodized Beats Bare Txhuas rau Cov Dej Kub Kub
Ib tug liab qab aluminium nto muaj emissivity nyob ib ncig ntawm 0.05–{1}} nws radiates tsawg heev tshav kub. Dub anodizing thawb emissivity rau 0.85-0.9. Rau lub dab dej kub ua haujlwm hauv huab cua tseem, hluav taws xob tuaj yeem suav txog 30-50% ntawm tag nrho cov cua sov dissipation. Dub anodizing tuaj yeem ua ob npaug ntawm cov cua kub hauv lub dab dej radiates ntawm qhov kub thiab txias.
FAQ
Q1: MOQ?
A1: 10 pcs.
Q2: Cov txheej txheem tsim khoom?
A2: Extrusion (tus qauv), CNC machining, bonded fin siv.
Q3: Nto tiav?
A3: Dub anodized (tus qauv), ntshiab anodized.
Q4: Thermal Performance range?
A4: 0.5℃/ W txog 20℃/ W nyob ntawm qhov loj thiab teeb tsa.
Q5: Kev cai configuration?
A5: Yog. Kev cai qhov ntev, mounting nta, thermal kuaj.
Q6: Dub vs.
A6: Dub muaj ntau dua emissivity - zoo dua rau kev ua kom txias hauv huab cua. Clear rau pom daim ntawv thov.
Zoo tsis yog -negotiable nyob rau hauv precision manufacturing. Txhua yam khoom raug soj ntsuam nruj ntawm txhua theem ntawm kev tsim khoom.
- ISO 9001: 2015- Certified zoo tswj system npog tsim, machining, thiab tshuaj xyuas
- MIL-A-8625- Tub rog- specification anodizing rau cov khoom siv txhuas
- Txheej Thickness Test- Kev txheeb xyuas qhov hnyav thiab tuab ntawm MIL spec
- Kev Ntsuas Tshuaj Tsuag- 1000- teev ASTM B117 corrosion resistance verification muaj
- Thawj Tshooj Kev Tshawb Fawb (FAI)- Daim ntawv qhia tag nrho nrog rau txhua qhov kev txiav txim tshiab
- Khoom siv Traceability- Mill daim ntawv qhia, cov ntaub ntawv kho cua sov, thiab daim ntawv pov thawj ntawm kev ua tau zoo rau txhua pawg
Los ntawm raw khoom mus rau cov khoom tiav, txhua kauj ruam yog tswj thiab sau tseg:
- Kev npaj khoom siv- CNC tig/milling rau ze -net shape
- Kev kho cua sov- Los ntawm - hardening lossis rooj plaub - hardening rau lub zog - qhov tseem ceeb
- Kev npaj nto- Degreasing, kua qaub ntxuav, thiab ua kom nto
- Electroplating- Tswj cov txheej txheem da dej nrog kev saib xyuas tuab
- Sealing / ci- Chrome sealing, anodize sealing, lossis hydrogen embrittlement relief ci
- Kev tshuaj xyuas- Txheej thickness ntsuas, kuaj adhesion, thiab kuaj pom
- Ntim- Kev tiv thaiv interleaving, VCI ntim, thiab tiv thaiv -tarnish wrapping
