Khoom Parameters
| Yam khoom | Specification |
|---|---|
| Khoom siv | Grey Hlau (ASTM A48), Cov Hlau Hlau (ASTM A536), Carbon Steel (WCB) |
| Qhov Loj | 1/2" – 48" |
| Kev ntsuas siab | Chav Kawm 150 - Chav Kawm 2500 |
| Lub ntsej muag Style | Lub ntsej muag tiaj tus, tsa ntsej muag, nplhaib hom sib koom |
| Daim ntawv thov | Roj thiab roj, kev kho dej, tshuaj lom neeg, kev tsim hluav taws xob |
| MOQ | 5 pcs ib |
piav qhia

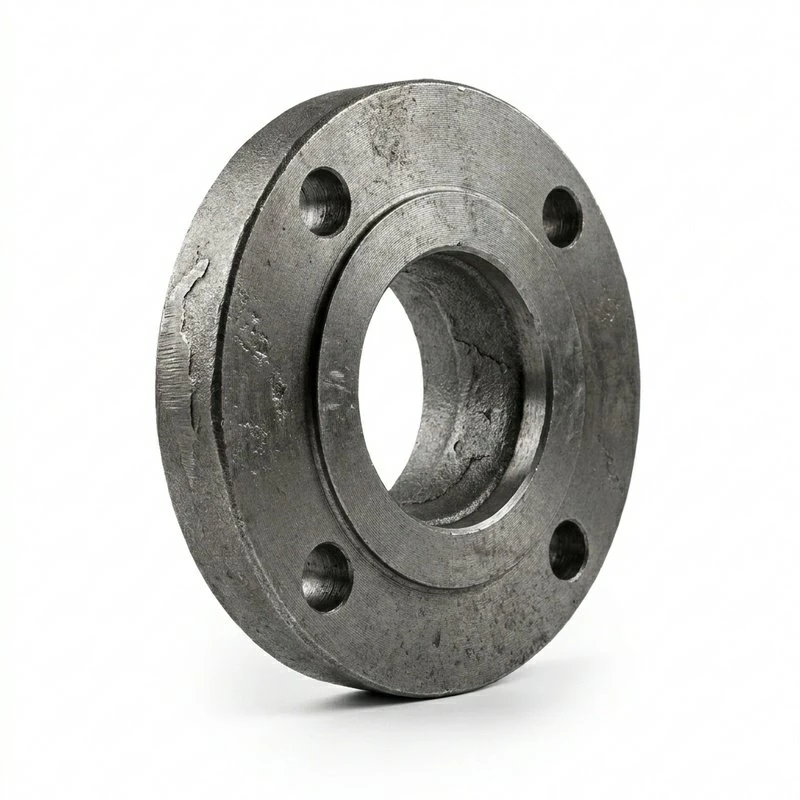

Cam khwb cia yeeb nkab flanges txuas cov kav dej thiab cov khoom siv nrog bolted pob qij txha uas tuaj yeem sib sau ua ke thiab disassembled - lub ntsej muag flange muab lub sealing nto rau lub gasket, thiab lub qhov ntsia liaj qhov rooj sib haum nrog cov mating flange. Cov txheej txheem casting tsim complex geometries zoo rau ntau yam flange hom siv nyob rau hauv industrial piping. Lub ntsej muag tiaj tus flanges: tag nrho lub ntsej muag yog sealing nto - siv thaum lub mating flange kuj yog lub ntsej muag tiaj tus, feem ntau nyob rau hauv qis - daim ntawv thov siab los yog tag nrho - lub ntsej muag gaskets. Nce lub ntsej muag flanges: qhov nruab nrab ntawm lub ntsej muag protrudes - feem ntau muaj flange style. Lub nplhaib hom sib koom ua ke (RTJ): qhov zawj ntawm lub ntsej muag lees txais lub nplhaib hlau rau kev ua haujlwm siab -siab thiab siab{10}} qhov kub thiab txias.
Vim li cas Flange Class thiab Kev Ntsuas Siab Yuav Tsum Tau Ua
Chav Kawm 150 flange raug ntsuas rau nws qhov siab - qhov kub thiab txias ua ke - nyob rau hauv chav tsev kub nws tuav ntau dua qhov kub siab. Siv Chav Kawm 150 flange ntawm lub siab nws siab dua - qhov ntsuas kub tso cai yog qhov yuam kev tsim. Kev ntsuas siab yog qhov ua haujlwm ntawm ob lub siab thiab qhov kub thiab txias, tsis yog lub siab ib leeg xwb.
FAQ
Q1: MOQ?
A1: 5 daim rau txheem cam khwb cia flanges.
Q2: Qhov ntau thiab tsawg?
A2: 1/2 nti txog 48 nti txoj kab uas hla.
Q3: Kev ntsuas siab?
A3: Chav Kawm 150 txog Chav Kawm 2500.
Q4: Lub ntsej muag style?
A4: Lub ntsej muag tiaj tus, tsa ntsej muag, nplhaib hom sib koom ua ke.
Q5: Cov khoom siv?
A5: Grey hlau (A48), ductile hlau (A536), carbon steel WCB.
Q6: Cov qauv?
A6: ANSI B16.5, B16.47, API 6A rau oilfield flanges.
Zoo tsis yog -negotiable nyob rau hauv precision manufacturing. Txhua yam khoom raug soj ntsuam nruj ntawm txhua theem ntawm kev tsim khoom.
- ISO 9001: 2015- Kev tswj hwm kev ua tau zoo npog tsim thiab tsim khoom
- API 6D / API 600- Tsim thiab sim ua raws li cov khoom siv valve thiab flanges
- Hydrostatic Pressure Test- Txhua lub valve lub cev siab- kuaj rau 1.5 × ntsuas siab
- MPI / LPI- Magnetic particle thiab kua penetrant tshuaj xyuas rau weld kev ncaj ncees
- CE / ATEX- Cov cuab yeej siv siab ua raws li EU kev lag luam muaj
- Passivation / Electropolishing- ASTM A967 cov txheej txheem rau corrosion kuj
- Khoom siv Traceability- Thaum tshav kub kub tus lej taug qab los ntawm cov khoom siv raw mus rau qhov ua tiav
Los ntawm raw khoom mus rau cov khoom tiav, txhua kauj ruam yog tswj thiab sau tseg:
- Qauv Ua- Ntoo lossis hlau qauv fabrication rau xuab zeb / centrifugal / peev casting
- Moulding- Xuab zeb casting, plhaub pwm, centrifugal, los yog poob - siv quav ciab peev casting teeb
- Melting & Pouring- Tswj lub qhov cub tawg nrog chemistry thiab ntsuas kub
- Solidification & Shakeout- Tswj cua txias nrog riser/tshem tawm thiab core shakeout
- Kev kho cua sov- Annealing, normalizing, los yog daws kev kho mob ib qho tshwj xeeb
- Tshuab dhos- CNC machining, drilling, thiab tapping rau qhov kawg qhov ntev
- Kev kho saum npoo- Sib tsoo, vuam, lossis txheej raws li xav tau
- Kev Tshawb Fawb & Kev Xeem- Dimensional, pom, hydrostatic, lossis NDT tshuaj xyuas
- Ntxuav & Ntim- Cov xuab zeb tshem tawm, degreasing, tiv thaiv xeb, thiab ntim khoom
Cim npe nrov: cam khwb cia yeeb nkab flange, Tuam Tshoj cam khwb cia yeeb nkab flange manufacturers
