Khoom Parameters
| Yam khoom | Specification |
|---|---|
| Khoom siv | Cov Hlau Hlau (ASTM A536 65-45-12) |
| Xov | BSPT, NPE |
| Qhov Loj | 1/4" – 4" |
| Kev ntsuas siab | Mus txog 1000 WOG |
| Daim ntawv thov | Dej, roj, roj, compressed cua |
| Nto | Dub oxide, zinc electroplate, enamel |
| MOQ | 10 pcs |
piav qhia

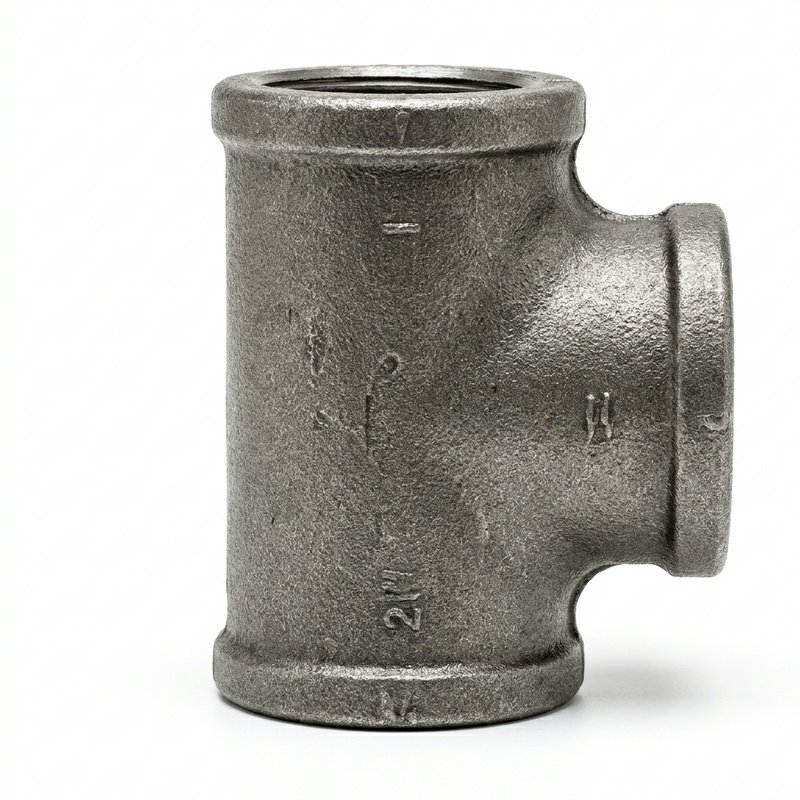

Threaded ductile hlau fittings txuas cov yeeb nkab txuas nrog cov xov tapered - NPT (National Pipe Thread Tapered) hauv North America, BSPT (British Standard Pipe Tapered) lwm qhov. Cov xov haum yog tapered kom raws li cov txiv neej xov mus tob rau hauv tus poj niam, qhov cuam tshuam tsim lub foob. Xov sealant (Teflon daim kab xev los yog cov yeeb nkab dope) ua rau txhua txoj kev xau seem. Ductile hlau fittings tuav dej feem ntau, roj, thiab compressed cua daim ntaub ntawv ntawm tus nqi qis tshaj malleable hlau los yog forged fittings. Lub cev hlau lub cev muaj zog dua li cov hlau grey thiab tsawg dua li cov hlau tsis muaj hlau.
Vim li cas Xov Sealant Xaiv Qhov Tseem Ceeb
Teflon daim kab xev: ua haujlwm zoo rau feem ntau daim ntawv thov tab sis tuaj yeem txiav thiab txav mus rau hauv qhov system. Rau cov cuab yeej pneumatic thiab ntsuas ntsuas, qhov no yog qhov teeb meem. Cov yeeb nkab dope: muab kev sib khi zoo dua rau cov ntawv thov roj, tab sis tuaj yeem tawg yog tias qhov haum nyob rau hauv kev vibration - qhov chaw nyob. Rau kev vibration kev pab cuam, siv xov sealant tsim rau vibrating tej yam kev mob.
FAQ
Q1: MOQ?
A1: 10 daim rau tus qauv fittings.
Q2: Khoom siv?
A2: Cov hlau ASTM A536 65-45-12.
Q3: Xov hom?
A3: NPT (North America) thiab BSPT (International).
Q4: Kev ntsuas siab?
A4: Txog 1000 WOG rau feem ntau threaded fittings.
Q5: Nto tiav?
A5: Dub oxide, zinc electroplate, enamel poob.
Q6: Kev cai configuration?
A6: Yog. Kev cai xov configurations, tshwj xeeb geometry, tshwj xeeb fittings.
Zoo tsis yog -negotiable nyob rau hauv precision manufacturing. Txhua yam khoom raug soj ntsuam nruj ntawm txhua theem ntawm kev tsim khoom.
- ISO 9001: 2015- Certified zoo tswj system npog tsim, machining, thiab tshuaj xyuas
- Passivation / Electropolishing- ASTM A967 cov txheej txheem rau corrosion kuj
- Khoom siv Traceability- Thaum tshav kub kub tus lej taug qab los ntawm cov khoom siv raw mus rau qhov ua tiav
- Thawj Tshooj Kev Tshawb Fawb (FAI)- Daim ntawv qhia tag nrho nrog rau txhua qhov kev txiav txim tshiab
Los ntawm raw khoom mus rau cov khoom tiav, txhua kauj ruam yog tswj thiab sau tseg:
- Qauv Ua- Ntoo lossis hlau qauv fabrication rau xuab zeb / centrifugal / peev casting
- Moulding- Xuab zeb casting, plhaub pwm, centrifugal, los yog poob - siv quav ciab peev casting teeb
- Melting & Pouring- Tswj lub qhov cub tawg nrog chemistry thiab ntsuas kub
- Solidification & Shakeout- Tswj cua txias nrog riser/tshem tawm thiab core shakeout
- Kev kho cua sov- Annealing, normalizing, los yog daws kev kho mob ib qho tshwj xeeb
- Tshuab dhos- CNC machining, drilling, thiab tapping rau qhov kawg qhov ntev
- Kev kho saum npoo- Sib tsoo, vuam, lossis txheej raws li xav tau
- Kev Tshawb Fawb & Kev Xeem- Dimensional, pom, hydrostatic, lossis NDT tshuaj xyuas
- Ntxuav & Ntim- Cov xuab zeb tshem tawm, degreasing, tiv thaiv xeb, thiab ntim khoom
Cim npe nrov: Tuam Tshoj threaded ductile hlau fittings, Tuam Tshoj threaded ductile hlau fittings manufacturers
