Khoom Parameters
| Yam khoom | Specification |
|---|---|
| Loj Dia | 12mm-150 hli |
| Cov qauv | Raws li ANSI B92.1, DIN 5480 |
| Khoom siv | 8620 Carburizing Steel, 4340 Alloy, 17-4 PH Stainless |
| Nto Hardness | 58–62 HRC |
| MOQ | 10 pcs |
piav qhia

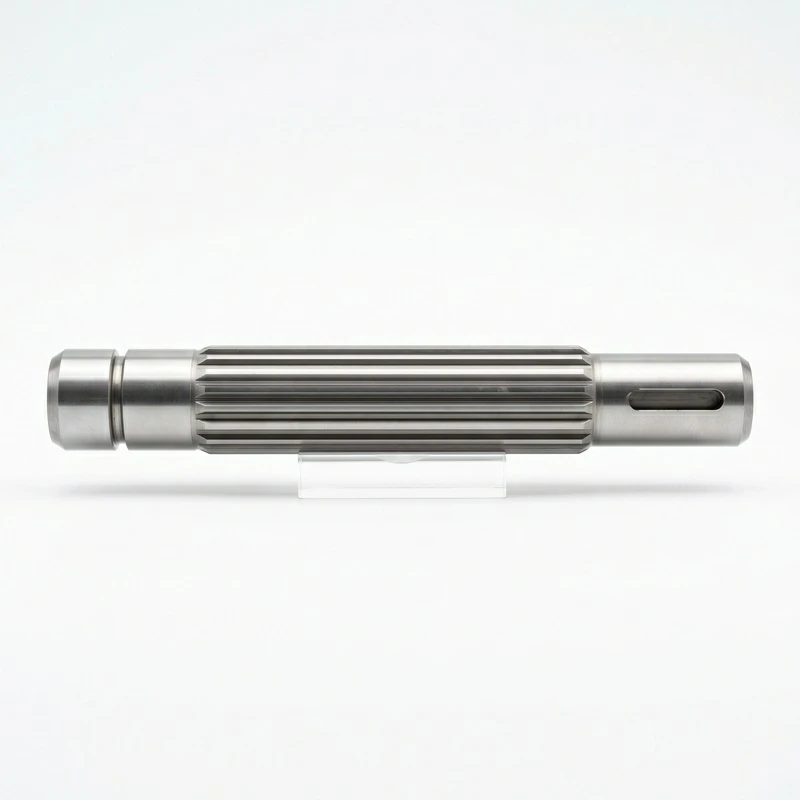

Internal spline shafts tshwm nyob rau hauv tsheb kis tau tus mob, aerospace actuators, thiab hydraulic systems - nyob qhov twg torque yuav tsum tau txais los ntawm ib tug rotating tivthaiv mus rau lwm yam tsis slippage. Cov hniav sab hauv nrog cov splines sab nraud, uas txhais tau hais tias tsis muaj qhov tseem ceeb ntawm kev ntxhov siab thiab kev thauj khoom zoo dua thoob plaws kev sib koom tes . 8620 carburizing steel yog cov neeg ua haujlwm. Qhov saum npoo tau nyuaj thaum kho cua sov thaum cov tub ntxhais nyob twj ywm ductile - kev sib xyaw ua ke zoo rau kev tuav cov khoom poob siab yam tsis ua nkig. 4340 muab koj cov khoom sib xws los ntawm tus ntoo khaub lig- ntu, uas tseem ceeb rau txoj kab uas hla loj dua . 17-4 PH stainless yog rau cov xwm txheej uas xeb yog qhov kev txhawj xeeb tiag tiag thiab lub zog tseem yuav tsum muaj.
Spline vs. Keyway - Vim li cas Splines Yeej rau Siab Torque
Ib txoj kev tseem ceeb tshem tawm txog 20% ntawm tus ncej ntoo khaub lig- ntu ntawm qhov chaw tseem ceeb - qhov tseem ceeb ntawm kev ntxhov siab nyob rau hauv qhov siab - chaw thau khoom. Splines faib torque hla tag nrho cov hniav hauv kev koom tes, yog li cov ncej nyob puv - txoj kab uas hla. Yog tias koj daim ntawv thov raug txwv los ntawm lub peev xwm ntawm lub zog, hloov los ntawm txoj hauv kev tseem ceeb mus rau splines tuaj yeem ua rau kom lub zog torque ntau yam tsis tau hloov txoj kab uas hla.
FAQ
Q1: MOQ?
A1: 10 pcs.
Q2: Cov qauv?
A2: ANSI B92.1 thiab DIN 5480. Custom configurations muaj.
Q3: Cov khoom siv?
A3: 8620, 4340, 17-4 PH stainless. Ntau muaj nyob rau ntawm kev thov.
Q4: Hardness?
A4: 58-62 HRC ntawm cov hniav, cov tub ntxhais tseem nyob twj ywm.
Q5: Kev kho cua sov hauv -tsev?
A5: Yog - rooj plaub- hardening, induction hardening, los ntawm -hardening.
Q6: Kev kho deg?
A6: Manganese phosphate, dub oxide, zinc plating, electroless npib tsib xee.
Zoo tsis yog -negotiable nyob rau hauv precision manufacturing. Txhua yam khoom raug soj ntsuam nruj ntawm txhua theem ntawm kev tsim khoom.
- AS/EN/JISQ 9100- Aerospace kev tswj kom zoo rau kev ya davhlau- qhov tseem ceeb thiab cov qauv
- NADCAP- Kev lees paub cov txheej txheem tshwj xeeb suav nrog kev kho cua sov, NDT, thiab kev kho saum npoo
- DFARS / TSI- Ua raws cov saw hlau rau kev tiv thaiv thiab kev siv chaw
- Boeing DMS / Airbus SP- Cov neeg siv khoom- cov ntaub ntawv tshwj xeeb yuav tsum muaj
- Passivation / Electropolishing- ASTM A967 cov txheej txheem rau corrosion kuj
- Khoom siv Traceability- Thaum tshav kub kub tus lej taug qab los ntawm cov khoom siv raw mus rau qhov ua tiav
Los ntawm raw khoom mus rau cov khoom tiav, txhua kauj ruam yog tswj thiab sau tseg:
- Kev npaj khoom siv- CNC tig/milling rau ze -net shape
- Kev kho cua sov- Los ntawm - hardening lossis rooj plaub - hardening rau lub zog - qhov tseem ceeb
- Kev npaj nto- Degreasing, kua qaub ntxuav, thiab ua kom nto
- Electroplating- Tswj cov txheej txheem da dej nrog kev saib xyuas tuab
- Sealing / ci- Chrome sealing, anodize sealing, lossis hydrogen embrittlement relief ci
- Kev tshuaj xyuas- Txheej thickness ntsuas, kuaj adhesion, thiab kuaj pom
- Ntim- Kev tiv thaiv interleaving, VCI ntim, thiab tiv thaiv -tarnish wrapping
