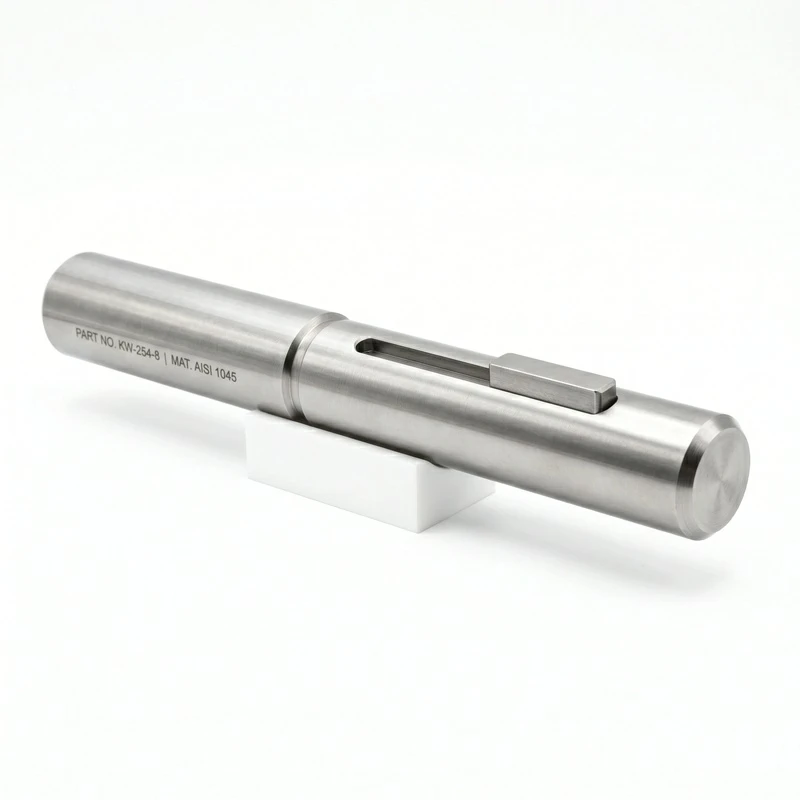

Keyway Shafts

Keyway Shafts

Keyway Type: Rectangular, Tapered, Spline-type
Cov Qauv: ASME, ISO, DIN, lossis kev cai
Dav kam rau ua: ± 0.013mm
Khoom siv: 1144 Kev Nyuaj Siab -Cov Ntawv Pov Thawj Hlau, 1045 Carbon, 303 Stainless
Keyseat Hardness: 50 HRC yam tsawg kawg nkaus
Xa kev nug

Khoom Parameters



Yam khoom Specification
Keyway hom Rectangular, Tapered, Spline- hom
Cov qauv ASME, ISO, DIN, lossis kev cai
Dav Tolerance ± 0.013 hli
Khoom siv 1144 Kev Nyuaj Siab -Cov Ntawv Pov Thawj Hlau, 1045 Carbon, 303 Stainless
Keyseat Hardness 50 HRC yam tsawg kawg nkaus
MOQ 10 pcs



piav qhia



Keyway shafts muab kev sib txuas zoo txhua yam ntawm cov khoom sib hloov - cov ntsiab lus sib txuam thiab cov kev sib koom ua ke xa cov torque ntseeg tau yam tsis muaj kev ntxhov siab uas cuam tshuam rau hauv cov khoom hnyav. Qhov keyway slot ua raws li cov lus qhia meej, tshem tawm kev swb thiab hnav uas ua rau cov shafts puas thiab cov khoom siv tsav. Milling tsim cov duab plaub, tapered, lossis spline- hom keyways rau ASME, ISO, lossis cov neeg siv khoom- cov qauv tshwj xeeb. Qhov dav thiab qhov tob ntawm qhov siab ntawm ± 0.013 hli ua kom lub rooj zaum tseem ceeb tsis muaj kev tshem tawm ntau dhau - yam uas ua rau fretting hnav ntawm qhov tseem ceeb thiab cov phab ntsa tseem ceeb thaum lub sijhawm ua haujlwm tas mus li.
product-1376-768



Yuav ua li cas thaum Keyway Clearance loj dhau



Kev tshem tawm ntau dhau ntawm qhov tseem ceeb thiab cov phab ntsa tseem ceeb ua rau fretting - me me micromotion uas hnav ob qhov chaw. Nyob rau tib lub sijhawm, qhov no nce kev tshem tawm ntxiv, ua rau muaj kev ntxhov siab ntau dua. Qhov tshwm sim yog ib txoj hauv kev xoob xoob uas ratchets nyob rau hauv kev thauj khoom ntau dua li xa cov torque zoo. Rau siab - daim ntawv thov voj voog, kev kam rau ntawm txoj kev tseem ceeb yog nruj dua li koj xav.
product-1376-768



FAQ



Q1: MOQ?

A1: 10 pcs.

Q2: Hom keyway?

A2: Rectangular, tapered, spline-hom. ASME, ISO, DIN, lossis kev cai.

Q3: Kev kam rau siab?

A3: Dav thiab qhov tob ± 0.013 hli.

Q4: Broach tom qab kev kho cua sov?

A4: Yog. Txheem rau siab - daim ntawv thov mus ncig.

Q5: Nto hardness?

A5: 50 HRC yam tsawg kawg nkaus ntawm cov rooj zaum hauv pem teb.

Q6: Nto tiav?

A6: Dub oxide thiab zinc plating rau xeb inhibition.



Zoo tsis yog -negotiable nyob rau hauv precision manufacturing. Txhua yam khoom raug soj ntsuam nruj ntawm txhua theem ntawm kev tsim khoom.

  • ISO 9001: 2015- Certified zoo tswj system npog tsim, machining, thiab tshuaj xyuas
  • Kev tshuaj xyuas CMM- Coordinate ntsuas rau complex geometry thiab nruj tolerances
  • Nto Roughness Measurement- Ra, Rz, thiab Rt daim ntawv qhia nrog txhua daim ntawv tshuaj xyuas
  • Passivation / Electropolishing- ASTM A967 cov txheej txheem rau corrosion kuj
  • Khoom siv Traceability- Thaum tshav kub kub tus lej taug qab los ntawm cov khoom siv raw mus rau qhov ua tiav
  • Thawj Tshooj Kev Tshawb Fawb (FAI)- Daim ntawv qhia tag nrho nrog rau txhua qhov kev txiav txim tshiab



Los ntawm raw khoom mus rau cov khoom tiav, txhua kauj ruam yog tswj thiab sau tseg:

Kev npaj khoom siv- CNC tig/milling rau ze -net shape
Kev kho cua sov - Los ntawm - hardening lossis rooj plaub - hardening rau lub zog - qhov tseem ceeb
Kev npaj nto- Degreasing, kua qaub ntxuav, thiab ua kom nto
Electroplating- Tswj cov txheej txheem da dej nrog kev saib xyuas tuab
Sealing / ci- Chrome sealing, anodize sealing, lossis hydrogen embrittlement relief ci
Kev tshuaj xyuas- Txheej thickness ntsuas, kuaj adhesion, thiab kuaj pom
Ntim- Kev tiv thaiv interleaving, VCI ntim, thiab tiv thaiv -tarnish wrapping



Cim npe nrov: Tuam Tshoj keyway shafts manufacturers
