Khoom Parameters
| Yam khoom | Specification |
|---|---|
| Module Ntau | 1.0mm-8.0 hli |
| AGMA Quality Level | 8–12 |
| Ncej kaum | 90℃tus qauv, kev cai kaum muaj |
| Khoom siv | 8620 Case-Hardening Steel, 4140 Alloy, 303 Stainless |
| MOQ | 10 pcs |
piav qhia

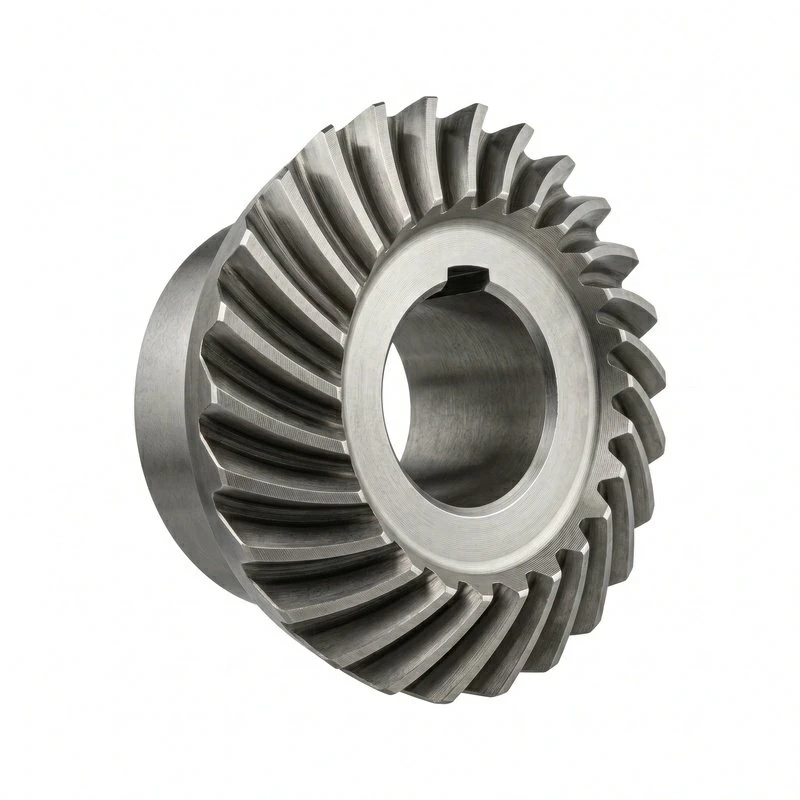

Kauv bevel iav kis lub zog ntawm kev sib tshuam shafts - feem ntau ntawm 90 degree, tab sis txhua lub kaum sab xis tuaj yeem tsim tau. Daim ntawv txhuam hniav muab cov hniav sib xyaw ua ke, uas yog qhov ntsiag to ntau dua li cov iav bevel ncaj thiab ua haujlwm siab dua yam tsis muaj 轰鸣 uas ncaj bevels tsim.
8620 rooj plaub- hardening steel yog cov qauv khoom siv rau bevel gears - nto tau nyuaj rau hnav tsis kam thaum cov tub ntxhais tseem nyob twj ywm rau kev poob siab tsis kam. 4140 alloy tuav ntau dua torque daim ntaub ntawv qhov twg los ntawm - hardening zog yog xav tau.
Lub tshuab Gleason thiab Klingelnberg tsim cov hniav sib txawv - lub kaw lus cuam tshuam rau lub suab nrov, lub peev xwm thauj khoom, thiab cov nqi tsim khoom. Peb ua haujlwm nrog ob lub tshuab thiab xaiv raws li koj cov kev xav tau ntawm daim ntawv thov.
Vim li cas Kauv Bevel Beats Ncaj Bevel rau feem ntau daim ntawv thov
FAQ
Q1: MOQ?
A1: 10 pcs.
Q2: Lub kaum sab xis?
A2: 90℃tus qauv. Kev cai kaum ntawm 20℃mus rau 180℃muaj.
Q3: AGMA qib?
A3: 8-12 nyob ntawm lub suab nrov, qhov tseeb, thiab qhov xav tau ntawm kev thauj khoom.
Q4: Cov khoom siv?
A4: 8620 rooj plaub- hardening, 4140 alloy, 303 stainless.
Q5: Qhov System?
A5: Gleason thiab Klingelnberg hniav geometry muaj.
Q6: Kev cai configuration?
A6: Yog. Kev cai sib piv, cov kaum sab xis, thiab cov hniav suav.
sddd ua
- ISO 9001: 2015- Certified zoo tswj system npog tsim, machining, thiab tshuaj xyuas
- Passivation / Electropolishing- ASTM A967 cov txheej txheem rau corrosion kuj
- Khoom siv Traceability- Thaum tshav kub kub tus lej taug qab los ntawm cov khoom siv raw mus rau qhov ua tiav
- Thawj Tshooj Kev Tshawb Fawb (FAI)- Daim ntawv qhia tag nrho nrog rau txhua qhov kev txiav txim tshiab
Los ntawm raw khoom mus rau cov khoom tiav, txhua kauj ruam yog tswj thiab sau tseg:
- Kev npaj khoom siv- Bar lossis forging cov khoom xaiv nrog cov ntaub ntawv pov thawj
- Rough Machining- CNC tig/milling rau iav qhov profile
- Iav Txiav- Hobbing, shaping, or milling for gear tooth geometry
- Kev kho cua sov- Carburizing, induction hardening, los yog los ntawm - hardening
- Sib tsoo / Finishing- Gear hniav sib tsoo rau AGMA 10+ qib zoo
- Kev tshuaj xyuas- Lead, involute, thiab tooth thickness ntsuas tiv thaiv kev kos duab
- Ntxuav & Ntim- Tiv thaiv xeb roj txheej thiab tiv thaiv ntim
