Khoom Parameters
| Yam khoom | Specification |
|---|---|
| Hub Dia | 25mm-200 hli |
| Spline suav | 6 – 48 zuv |
| Cov qauv | ANSI B92.1, DIN 5480, kev cai |
| Khoom siv | 17-4 PH Stainless, 4340 Alloy Steel |
| MOQ | 10 pcs |
piav qhia

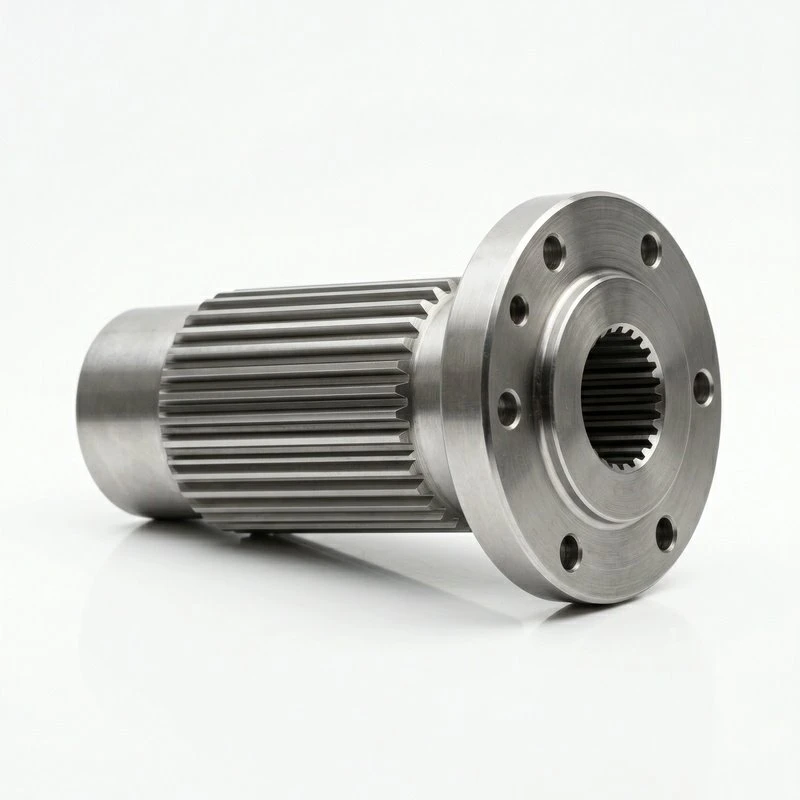

Splined ncej hubs txuas rotating Cheebtsam thaum torque yuav tsum tau los ntawm tsis slippage - internal splines mate nrog lwm splines, faib load hla ntau cov hniav tshaj ib tug keyway kev tswj. Cov cuab yeej siv kho mob, aerospace actuators, thiab kev lag luam automation drivetrains siv splines rau qhov zoo, kev sib txuas zoo.
17-4 PH stainless nag lossis daus- hardens mus rau qib zoo zog thaum tswj corrosion kuj - haum rau marine, kev kho mob, thiab zaub mov-ua daim ntaub ntawv uas xeb tsis tuaj yeem zam tau . 4340 hlau alloy yuav siv sij hawm ntau dua torque rau aerospace thiab tub rog daim ntaub ntawv uas ob lub zog thiab hnyav hnyav.
Broaching los yog milling ua rau cov hniav sab hauv - kam rau ua nyob rau hauv txoj kab uas hla loj, me me txoj kab uas hla, thiab cov hniav sib nrug yog nruj vim hais tias lub geometry txiav txim seb yuav ua li cas sib npaug load faib thoob plaws kev koom tes.
Splined vs. Keyway Connections
FAQ
Q1: MOQ?
A1: 10 pcs.
Q2: Cov qauv?
A2: ANSI B92.1 thiab DIN 5480. Custom configurations muaj.
Q3: Cov khoom siv?
A3: 17-4 PH stainless, 4340 alloy. Ntau muaj nyob rau ntawm kev thov.
Q4: Cov kev cai dab tsi?
A4: Ncaj nraim los ntawm - bores, kauj ruam bores, pilot nta.
Q5: Cov yam ntxwv thib ob?
A5: Keyways, threaded qhov, ntsej muag nta - txheem theem nrab kev ua haujlwm.
Q6: Cov nqi them li cas?
A6: 6 mus rau 48 hniav nyob ntawm txoj kab uas hla thiab torque yuav tsum tau.
Zoo tsis yog -negotiable nyob rau hauv precision manufacturing. Txhua yam khoom raug soj ntsuam nruj ntawm txhua theem ntawm kev tsim khoom.
- ISO 13485 Kev Tswj Xyuas Kev Lag Luam- Kev txhawb nqa tag nrho FDA; kev tswj xyuas zoo rau cov khoom siv kho mob
- ISO 11607 / FDA 21 CFR 820- Kev ntim khoom thiab kev ua kom tsis muaj menyuam rau cov khoom siv cog thiab phais
- ASTM F136 / F67 / ASTM F136 thiab F67- Cov ntaub ntawv tshwj xeeb ua raws li kev cog qoob loo - qib titanium thiab stainless
- Thawj Tshooj Kev Tshuaj Xyuas (FAI)- Daim ntawv qhia txog qhov ntev thiab ua haujlwm rau txhua qhov kev kho mob
- Kev tshuaj xyuas CMM- Coordinate ntsuas rau complex geometry thiab nruj tolerances
- Nto Roughness Measurement- Ra, Rz, thiab Rt daim ntawv qhia nrog txhua daim ntawv tshuaj xyuas
- Passivation / Electropolishing- ASTM A967 cov txheej txheem rau corrosion kuj
- Khoom siv Traceability- Kev ntsuas kub ntawm cov khoom siv raw mus rau qhov ua tiav
Los ntawm raw khoom mus rau cov khoom tiav, txhua kauj ruam yog tswj thiab sau tseg:
- Kev xaiv khoom- Hauv av bar lossis forged dawb paug nrog cov ntaub ntawv pov thawj
- Rough Machining- CNC tig mus rau cov kauj ruam, grooves, thiab nta
- Splining / Keyway Txiav- Hobbing lossis broaching rau kis tau tus mob
- Kev kho cua sov- Induction hardening, rooj plaub- hardening, los yog los ntawm -hardening
- Ua tiav kev sib tsoo- Centerless los yog nruab nrab ntawm -centers sib tsoo rau zaum kawg txoj kab uas hla / kam rau ua
- Polishing / Superfinishing- Ra 0.2–0.8 μm nto tiav rau cov kabmob nto
- Kev tshuaj xyuas & ntim- CMM check, deg roughness report, xeb tiv thaiv ntim
