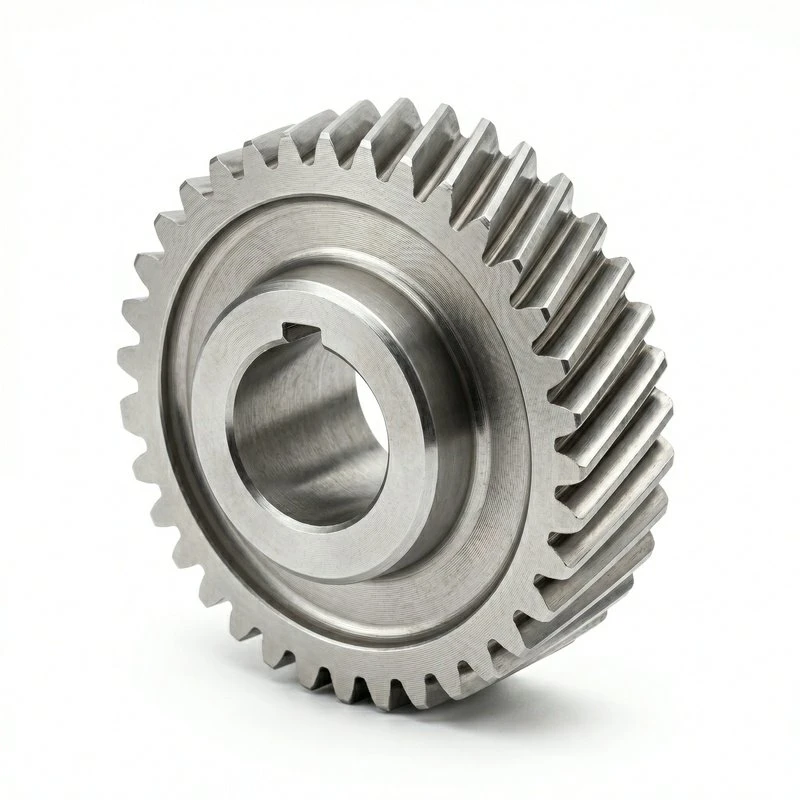

Kauv Helical Gears

Kauv Helical Gears

Module Ntau Yam: 1.0mm - 8.0mm
AGMA Qib Siab: 8-12
Lub kaum ntse ntse: 14.5 degree, 20 degree
Khoom siv: 8620 Case-Hardening Steel, 4140 Alloy, 303 Stainless
MOQ: 10 pcs
Xa kev nug

Khoom Parameters



Yam khoom Specification
Module Ntau 1.0mm-8.0 hli
AGMA Quality Level 8–12
Lub kaum sab xis 14.5 degree, 20 degree
Khoom siv 8620 Case-Hardening Steel, 4140 Alloy, 303 Stainless
MOQ 10 pcs



piav qhia



Kauv helical iav muaj cov hniav txiav ntawm lub helix lub kaum sab xis es tsis yog thaum uas tig mus rau lub iav axis - kab pheeb ces kaum kev sib koom tes txhais tau tias maj mam sib cuag uas yog heev ntsiag to dua ncaj - txiav spur iav. Lub helix lub kaum sab xis tsim axial thrust load uas cov bearings yuav tsum tau ua, tab sis lub suab nrov txo thiab siab dua load peev xwm ua rau kauv helical gears tus qauv rau speedReducers thiab industrial gearboxes.

8620 rooj plaub- hardening steel tsim ib tug tawv hniav nto nrog ib tug ductile core - kev sib xyaw ua ke ua haujlwm poob siab loads yam tsis ua nkig . 4140 los ntawm-hardened alloy muab lub zog zoo rau cov ntaub ntawv nruab nrab load. 303 stainless yog siv thaum yuav tsum tau corrosion kuj.

product-1376-768



Sab laug tes vs. sab tes xis - Nws tseem ceeb rau ncej layout



Helical iav tuaj rau sab laug- tes thiab sab xis - tes helix cov lus qhia. Ob lub meshing iav ntawm cov ncej sib npaug yuav tsum muaj ob txhais tes helix. Rau ib tug ceev reducer nrog ib tug input thiab tso zis ncej, lub iav khub yuav tsum yog opposite tes. Yog tias koj lub iav meshing suab tsis raug lossis cov shafts tsis raug, xyuas lub helix tes ua ntej - nws yog ib qho yuam kev sib dhos.
product-1376-768



FAQ



Q1: MOQ?

A1: 10 pcs.

Q2: AGMA qib?

A2: 8–12. Kev xaiv nyob ntawm lub suab nrov, qhov tseeb, thiab qhov xav tau ntawm kev thauj khoom.

Q3: Helix lub kaum ntse ntse?

A3: 8℃-25℃raug. Kev xaiv nyob ntawm qhov xav tau ntawm kev thauj khoom thiab suab nrov.

Q4: Cov khoom siv?

A4: 8620 rooj plaub- hardening, 4140 alloy, 303 stainless.

Q5: Thrust loads?

A5: Yog. Axial thrust yuav tsum tau tswj nrog thrust bearings.

Q6: Kev cai configuration?

A6: Yog. Custom helix angles, pressure angles, and tooth counts.



Zoo tsis yog -negotiable nyob rau hauv precision manufacturing. Txhua yam khoom raug soj ntsuam nruj ntawm txhua theem ntawm kev tsim khoom.

  • ISO 9001: 2015- Certified zoo tswj system npog tsim, machining, thiab tshuaj xyuas
  • Passivation / Electropolishing- ASTM A967 cov txheej txheem rau corrosion kuj
  • Khoom siv Traceability- Kev ntsuas kub ntawm cov khoom siv raw mus rau qhov ua tiav
  • Thawj Tshooj Kev Tshuaj Xyuas (FAI)- Daim ntawv qhia tag nrho nrog rau txhua qhov kev txiav txim tshiab



Los ntawm raw khoom mus rau cov khoom tiav, txhua kauj ruam yog tswj thiab sau tseg:

Kev npaj khoom siv- Bar lossis forging cov khoom xaiv nrog cov ntaub ntawv pov thawj
Rough Machining- CNC tig/milling rau iav qhov profile
Iav Txiav- Hobbing, shaping, or milling for gear tooth geometry
Kev kho cua sov- Carburizing, induction hardening, los yog los ntawm - hardening
Sib tsoo / Finishing- Gear hniav sib tsoo rau AGMA 10+ qib zoo
Kev tshuaj xyuas- Lead, involute, thiab tooth thickness ntsuas tiv thaiv kev kos duab
Ntxuav & Ntim- Tiv thaiv xeb roj txheej thiab tiv thaiv ntim



Cim npe nrov: kauv helical iav, Tuam Tshoj kauv helical iav manufacturers
